• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1967–1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 116605

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• PCL86 PCH200 PCL85 PCF802 PY88 PL504 DY802 RT44B4

• Number of Transistors
• 11

• Semiconductors
• AF239 AF139 IW8377 AF200 AF125 AF121 DW6577 BF110 BFY39 AF126 AF137 OA90 OA161 OA161 AA119 AA119 OA161 SFD108 M80C4 BY250

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

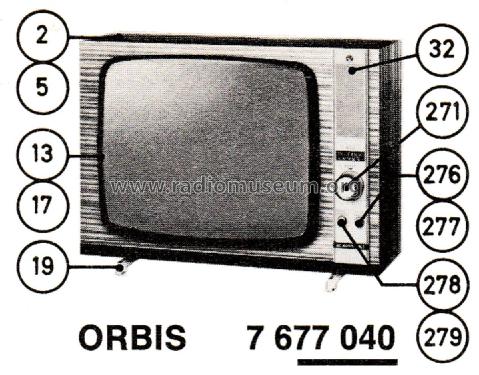

• Model: Orbis 7.677.040 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 385 x 150 mm / 20.1 x 15.2 x 5.9 inch

• Notes
• VHF/UHF-Einblock-Tuner mit Einknopf-Programmwähler.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• - - Manufacturers Literature (Blaupunkt Katalog, Gesamtprogramm 1967)

• Literature/Schematics (1)
• -- Original-techn. papers. (Kundendienstschrift KDB 977-405, Fernseher 1967/68)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
