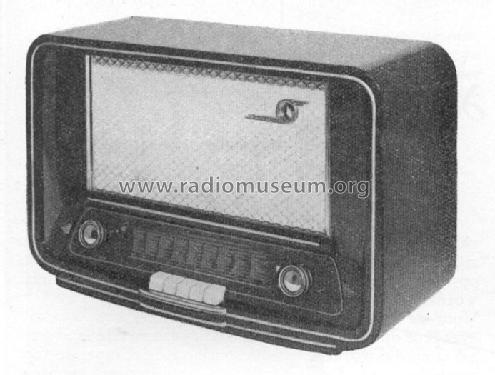

Pastorale F535WHK
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25067
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Q= prospectus
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 450/10,7 kHz
- Tuned circuits
- 8 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Pastorale F535WHK - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 575 x 375 x 220 mm / 22.6 x 14.8 x 8.7 inch
- Net weight (2.2 lb = 1 kg)
- 10.9 kg / 24 lb 0.1 oz (24.009 lb)
- External source of data
- Wiesmüller
- Source of data
- Lange, Schaltungen der Funkindustrie
- Circuit diagram reference
- Info Dr. H. Börner without schematic
- Literature/Schematics (2)
- -- Original prospect or advert (Point Bleu Prospekt, 1953-1954)
