- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338476
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Manufacturer documentation
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 3R8: 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

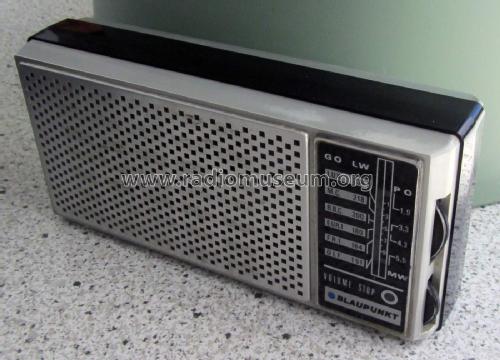

- Model: Poppy - Blaupunkt Ideal, Berlin,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 168 x 80 x 45 mm / 6.6 x 3.1 x 1.8 inch
- Notes
-
Siehe auch Ducretet DT192 mit anderer Skala für LW mit Sender- und Frequenzangaben sowie Clarville PP30.
- Net weight (2.2 lb = 1 kg)
- 0.246 kg / 0 lb 8.7 oz (0.542 lb)
- Mentioned in
- -- Original prospect or advert (Blaupunkt Prospekt 7/1972)
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
