• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1967/1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 116607

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• PCF802 PCL85 PL36 PY88 DY86 RT31B4

• Number of Transistors
• 15

• Semiconductors
• AF239 AF139 IW8377 AF200 AF125 AF121 DW6577 BFY39 BF110 BFY37 DW6208 AF126 AF137 AC126 AD148 OA90 SFD108 AA119 OA161 M80C4 B30C300 BY250

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

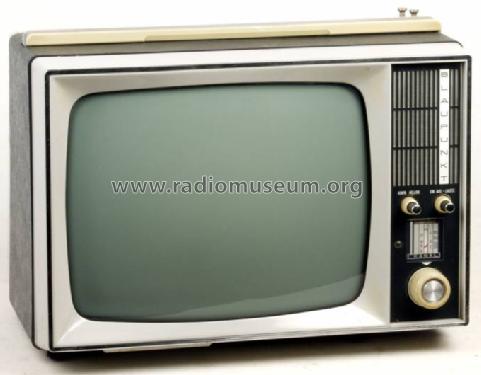

• Model: Prinz 7.677.030 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 250 x 265 mm / 14.8 x 9.8 x 10.4 inch

• Notes

• 31-cm-Portable. VHF/UHF-Einblock-Tuner mit Einknopf-Programmwähler.

  Siehe auch Blaupunkt Scout 7.678.030. Der Name wurde aus warenzeichenrechtlichen Gründen von Prinz in Scout geändert.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• Handbuch VDRG 1967/1968

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.

• Other Models

• Here you find 3587 models, 3275 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
