Punto Azul Barcelona 2343A
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330830
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50-60Hz, 110; 127; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Punto Azul Barcelona 2343A - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 640 x 400 x 280 mm / 25.2 x 15.7 x 11 inch
- Notes
-

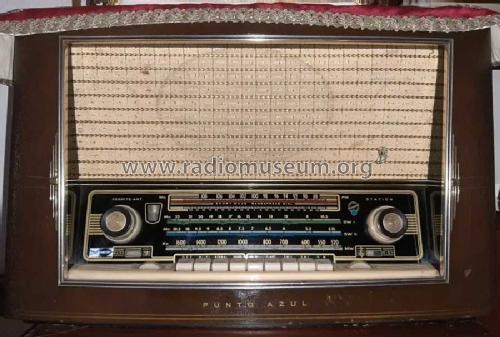

This model has a Blaupunkt export chassis with MW, 2x SW and FM wave bands with an English dial scale and Blaupunkt logo, in a cabinet branded Punto Azul.
Compare with domestic model Blaupunkt Barcelona 2342. and another export model Barcelona 2340 USA.

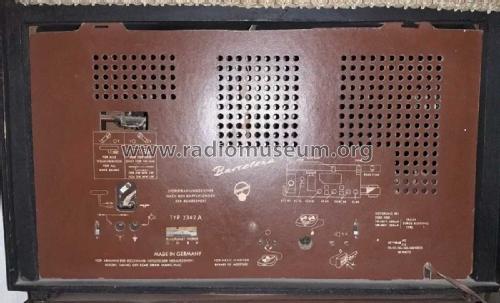

Made in Germany.
