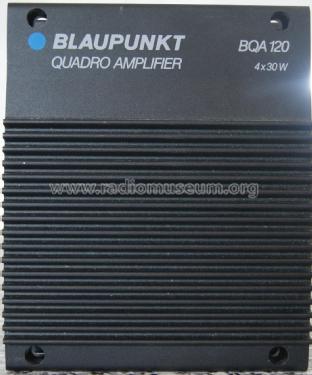

Quadro Amplifier BQA 120 7.607.782.510

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 332276
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (120 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Quadro Amplifier BQA 120 7.607.782.510 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 155 x 125 x 40 mm / 6.1 x 4.9 x 1.6 inch
  • Notes

  • 4 Kanal Amplifier Blaupunkt BQA-120 mit 120 W max. Power für Einbau in Kfz.
    DIN- und Lautsprecher-Eingänge, wahlweise auch mit DIN- und Cinch- Eingängen erhältlich. Trennverstärkereingänge zur Rausch-Minimierung.

    4x 20 W Sinusleistung bei 1% Klirr. Frequenzgang 10-90.000 Hz.
    Signal/Rausch-Abstand: 90 dB
    Gain Adjust.

    Made in P.R.C. (China).

  • Net weight (2.2 lb = 1 kg)
  • 0.853 kg / 1 lb 14.1 oz (1.879 lb)
  • Author
  • Model page created by Andreas Rittsteiger. See "Data change" for further contributors.
