• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112472

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• 2SC784 2SC785 2SC380 2SC1000 2SC732 2SC733 2SC372 2SC733 2SC372 2SC733 2SC733 2SC735 2SB415 2SB415 M8513 1N60 1S1555 1S2236 1B2C1

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Ranger 7.655.030 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 170 x 80 mm / 12.2 x 6.7 x 3.1 inch

• Notes
• 1 IC. Anschlüsse: Mikrofon mit Fernbedienung und Aussenlautsprecher.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977

• Literature/Schematics (1)

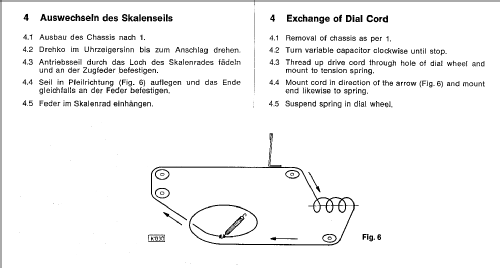

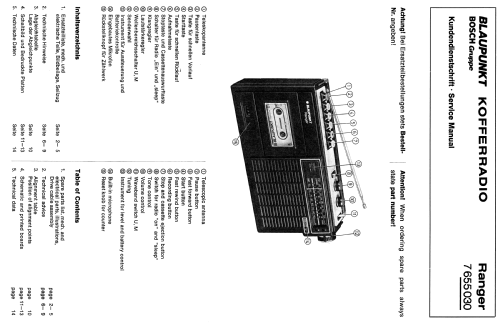

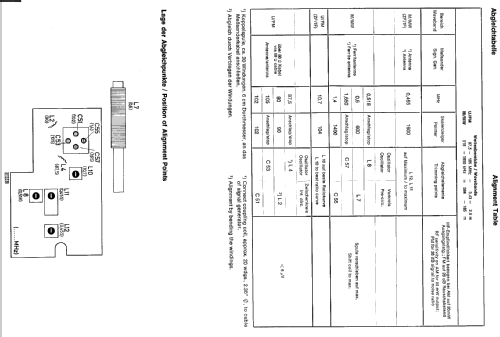

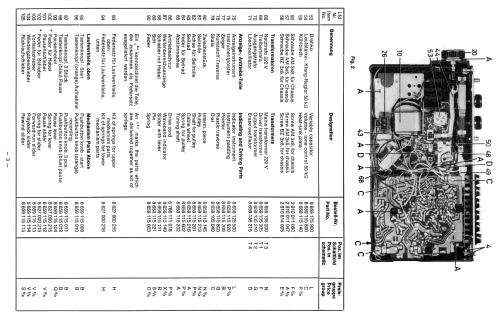

• -- Original-techn. papers. (Service-Manual BP/KDB 576.04.003)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
