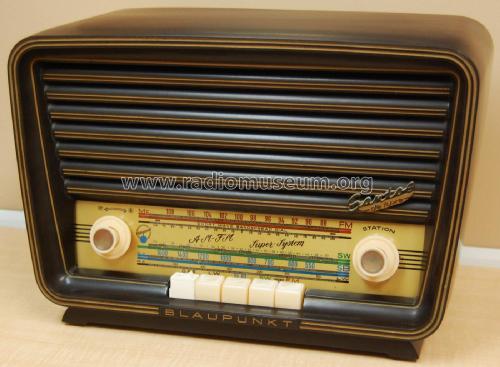

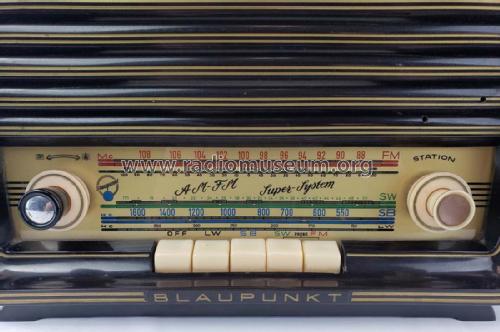

Santos 2310 (US)
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1956/1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323601
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
ebay.com #203074402371 seller paco3051
- Number of Tubes
- 5
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Santos 2310 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 390 x 270 x 195 mm / 15.4 x 10.6 x 7.7 inch
- Notes
-
Santos 2310 (US) is an export model of Santos de Luxe 2310 for the USA with FM up to 108 MHz.
There is also a general export model Santos Export 2310, as well as a version for Sweden and Norway Santos de Luxe 2310 S u. N.
- Other Models
-
Here you find 3587 models, 3275 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model Santos is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: Santos 2310
Threads: 1 | Posts: 2
Dear Sir
I’m looking for dial glass scales Blaupunkt Santos 2310.luxo
Best regards
José Duarte
Jose Duarte Costa, 04.Jun.18
