• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1976

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 120886

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC237 BC237 BDX18

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

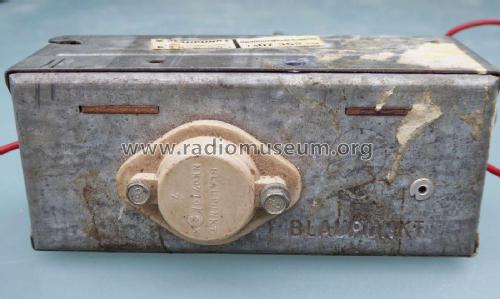

• Model: Spannungsverdoppler 7.607.359 - Blaupunkt Ideal, Berlin,

• Dimensions (WHD)
• 113 x 45 x 43 mm / 4.4 x 1.8 x 1.7 inch

• Notes
• Zum Betrieb von 12-V-Autoradios an 6-V-Bordnetzen.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
