• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24806

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

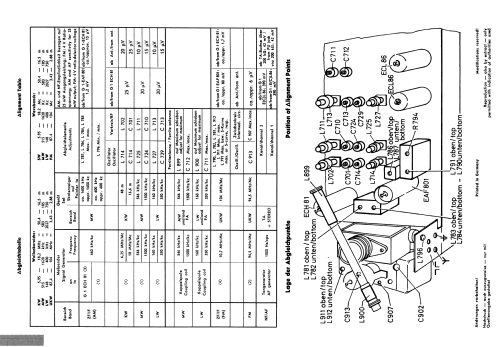

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EM87 ECL86

• Number of Transistors

• Semiconductors
• AA113 AA113 B250C150

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

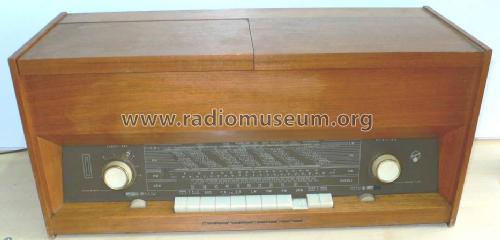

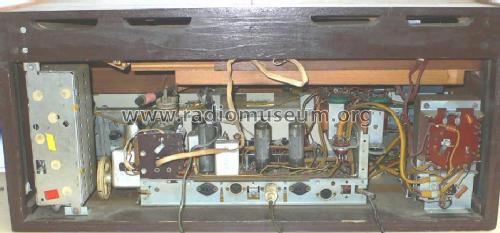

• Model: Steuergerät II 23.460 [ab U 773001] - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 615 x 280 x 245 mm / 24.2 x 11 x 9.6 inch

• Notes

• Steuergerät II (2) 23.460

  Dreh- und abschaltbare Ferritantenne; Stereo-NF-Verstärker mit 2 Endstufen je 4 W.
  Phono-Chassis = Perpetuum-Ebner PE31.

  Service-Unterlagen beim Steuergerät 1

• Net weight (2.2 lb = 1 kg)
• 13.6 kg / 29 lb 15.3 oz (29.956 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Manual EVB 934-455, Serie U)

• Literature/Schematics (2)
• -- Original-techn. papers. (ETL-Liste, EVB 934-403, Serie U)
