• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25739

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

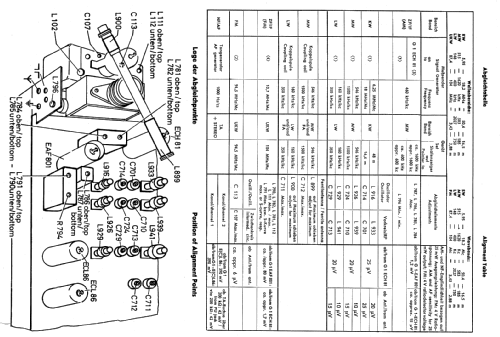

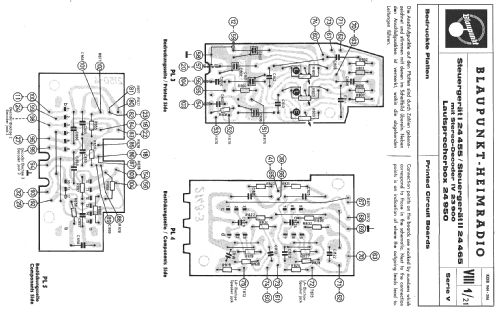

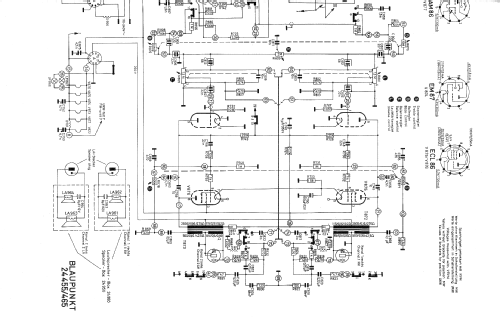

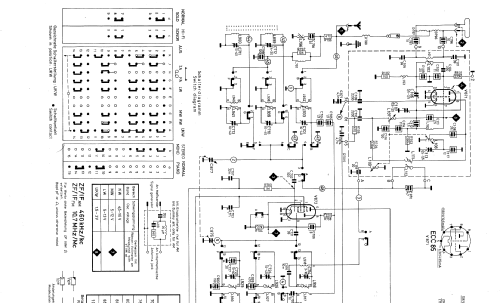

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EM87 EAM86 ECL86

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Steuergerät II 24 465 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 285 x 250 mm / 24.4 x 11.2 x 9.8 inch

• Notes
• Rundfunk-Chassis: Stereo-Decoder (mit ECC81) eingebaut; Stereo-NF-Verstärker mit 2 Endstufen je 4 W.
  Phono-Chassis = Perpetuum-Ebner PE31.

• Net weight (2.2 lb = 1 kg)
• 14.2 kg / 31 lb 4.4 oz (31.278 lb)

• Price in first year of sale
• 835.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
