• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1982/1983

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 279362

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

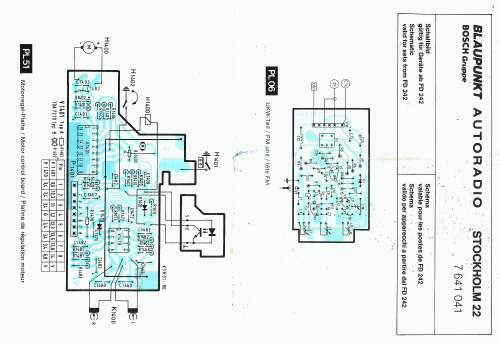

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

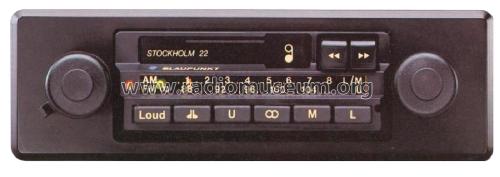

• Model: Stockholm 22 7.641.041.419 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 44 x 145 mm / 7 x 1.7 x 5.7 inch

• Notes

• 4 Lautsprecher-Ausgänge, 2 x 10 Watt Musik, CR Stereo, automatischer Cassettenaushub, Hard-Permally-Tonkopf.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
