Stockholm 24 350

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25612

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

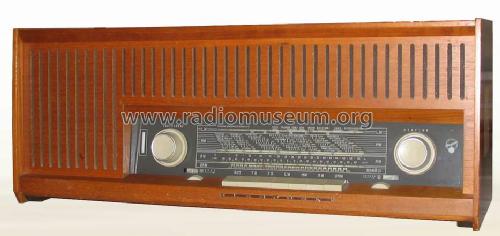

• Picture

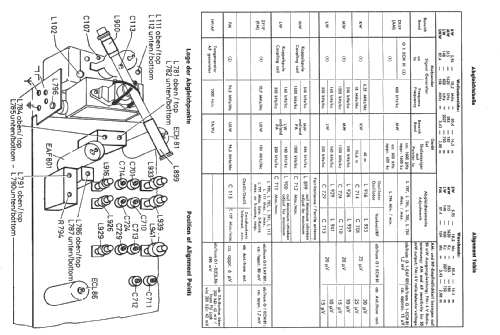

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EM87

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stockholm 24 350 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 253 x 210 mm / 25.6 x 10 x 8.3 inch

• Notes
• Dioden: 2× AA113

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Price in first year of sale
• 480.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
