• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1965/1966

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 26365

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

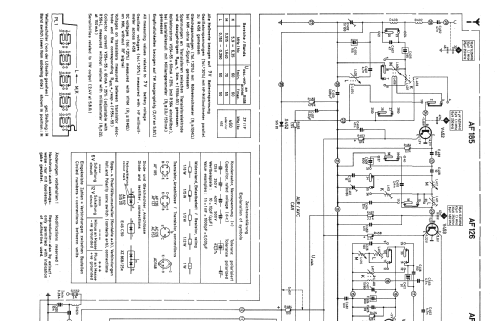

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF185 AF185 AF126 AF126 AF127 AC126 AC126 AC126 or. AC122 AC153 or. AC128 AD148 AD148 AA112 SIS20 XZ868/25x E45C50

• Main principle
• Superheterodyne (common); ZF/IF 460 or 452 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stuttgart ab W 500001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 50 x 147 mm / 7 x 2 x 5.8 inch

• Notes
• Omnimat-Wählautomatik; tropenfest.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 268.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.
