• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1962/1963

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 24591

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

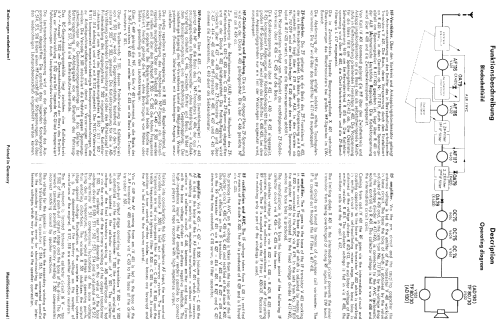

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF116 AF116 AF117 OC75 OC75 OC74 TF80/30 TF80/30 OA79 OA79 OA79

• Main principle
• Superhet with RF-stage; ZF/IF 460 or 473 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

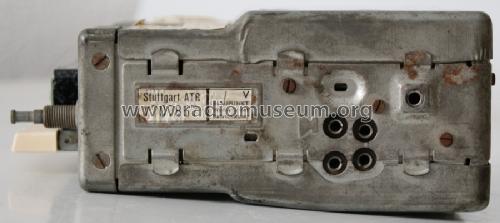

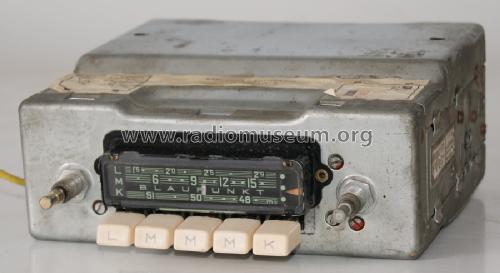

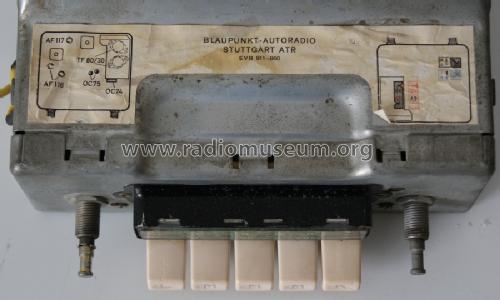

• Model: Stuttgart ATR ab T 700001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 183 x 82 x 168 mm / 7.2 x 3.2 x 6.6 inch

• Notes
• Omnimat-Wählautomatik. Ausgangsleistung bei 12 V = 6 W.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Price in first year of sale
• 265.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.
