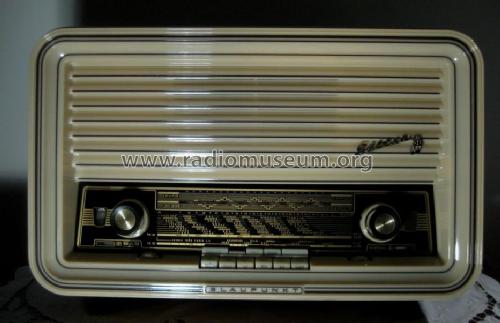

Sultan 2420 USA
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26409
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10,7 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sultan 2420 USA - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Notes
- Exportversion für die USA
- Price in first year of sale
- 299.00 DM
- Source of data
- -- Schematic
- Other Models
-
Here you find 3589 models, 3277 with images and 2329 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model Sultan is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: Sultan 2420 USA
Threads: 1 | Posts: 3
Request help to confirm model name of console sold new in Canada in 1956/57??

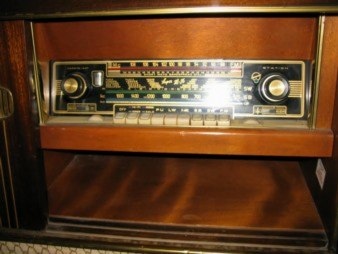

Individual has requested help to identify specifics on Blaupunkt console per attached photos:
On IMG 0119, the paper sticker (with blue stripe) on rear of chassis reads as follows:
2430 USA S402798
Individual has requested help to identify specifics on Blaupunkt console per attached photos:
On IMG 0119, the paper sticker (with blue stripe) on rear of chassis reads as follows:
2430 USA S402798
Attachments
- IMG_0121_2 (44 KB)
- Img_0119 (36 KB)
Robert Sarbell † 22.3.22, 23.Oct.04
