• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98962

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

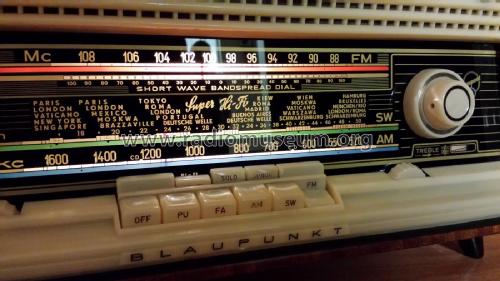

• Model: Sultan 2520 [Export] - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 21.3 x 13.8 x 9.4 inch / 541 x 351 x 239 mm

• Notes
• SW-bandspread dial. Export model for USA.

• Net weight (2.2 lb = 1 kg)
• 9.7 kg / 21 lb 5.9 oz (21.366 lb)

• Author
• Model page created by Rudolf HEINZ. See "Data change" for further contributors.
