Stereo Tuner T-110 7.629.120

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118139
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

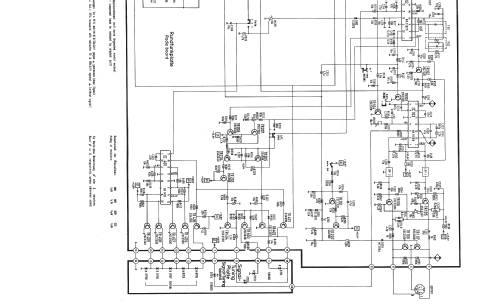

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 36
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Tuner T-110 7.629.120 - Blaupunkt Ideal, Berlin,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 110 x 250 mm / 17.1 x 4.3 x 9.8 inch
  • Notes

  • Blaupunkt Stereo Tuner T-110,
    Empfangsbereiche:
    FM (87,5-108 MHz),
    MW (510-1620 kHz),
    LW (150-350 kHz),
    6 ICs.

    Halbleiter teilweise mehrfach vorhanden.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Blaupunkt Produkt-Katalog 1980/81)
