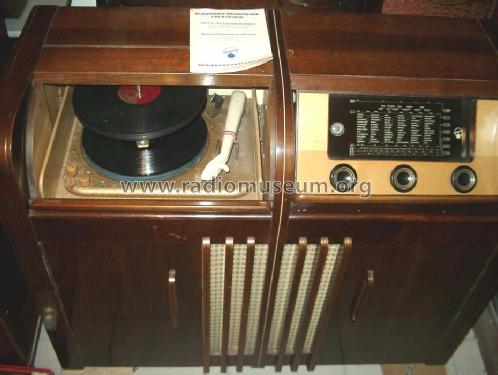

Musiktruhe T990W
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 808
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Blaupunkt Geräte Programm 1950/51

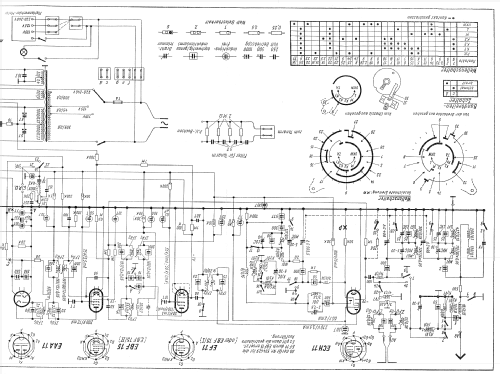

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 473/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musiktruhe T990W - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 960 x 840 x 410 mm / 37.8 x 33.1 x 16.1 inch
- Notes
-
HF-Teil des Blaupunkt Gross-Supers G369W kombiniert mit 8 Watt Gegentakt-Endstufe.
- Net weight (2.2 lb = 1 kg)
- 60 kg / 132 lb 2.5 oz (132.159 lb)
- Price in first year of sale
- 990.00 DM
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange Schaltungen der Funkindustrie, Buch 2
