Tirol 23 70770
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1960/1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 265746
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

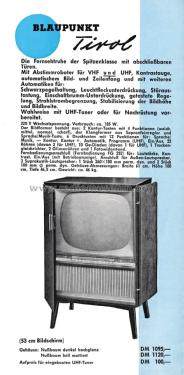

Blaupunkt Prospekt Fernseher 1960/61

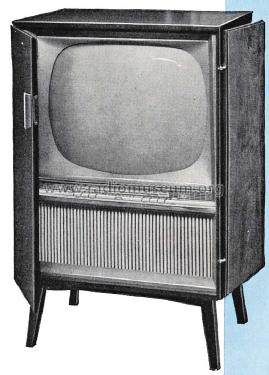

Blaupunkt Prospekt Fernseher 1960/61
- Number of Tubes
- 22
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tirol 23 70770 - Blaupunkt Ideal, Berlin,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 610 x 1000 x 480 mm / 24 x 39.4 x 18.9 inch
- Net weight (2.2 lb = 1 kg)
- 51 kg / 112 lb 5.4 oz (112.335 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
