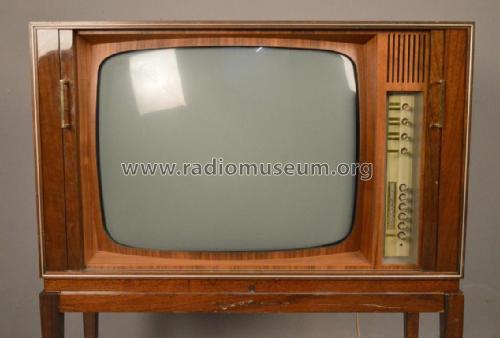

Tirol 75.750
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1965/1966
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 110777
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- 12
- Semiconductors
- AF139 AF139 SE3001 or. IW8377 AF125 AF126 AF137 AF200 AF125 AF121 SE1001 BFY39 BF110 BA110 OA91 OA91 AA119 AA119 OA90 OA161 OA161 BY250
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tirol 75.750 - Blaupunkt Ideal, Berlin,
- Shape

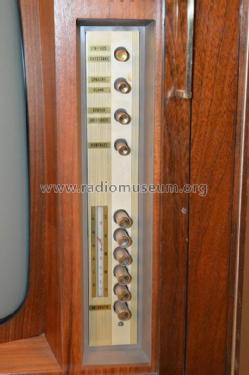

- Console with Push Buttons.
- Dimensions (WHD)
- 855 x 975 x 335 mm / 33.7 x 38.4 x 13.2 inch
- Notes
-
VHF/UHF. Technische Daten wie Sevilla 75.450, jedoch Vitrine mit verschließbaren Jalousien.
Anschluss für Kabelfernbedienung FG 257 (Lautstärke u. Helligkeit).
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- -- Original-techn. papers. (Service-Unterlagen, KDB957-425, Fernseher 1965/66)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
