• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101170

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

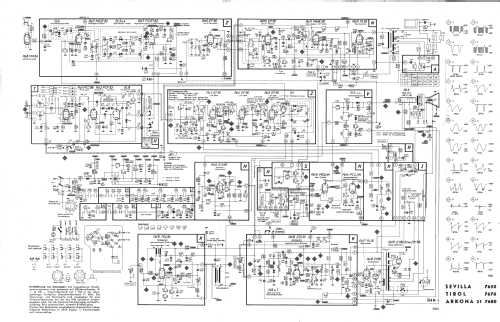

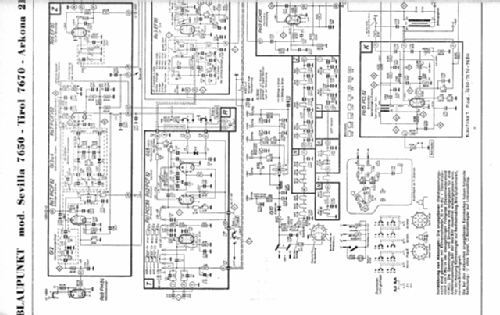

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF82 PCF82 EF80 EF80 PABC80 PL82 EF80 EF80 EF80 ECH81 PCL84 PCL82 ECC91 PL36 PY88 EY86 or DY86 PM84 AW53-88

• Number of Transistors

• Semiconductors
• OA160 G5/2 RL43 RL43 RL43 OA261 OA261 OA261 E12,5C5 E220C450

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

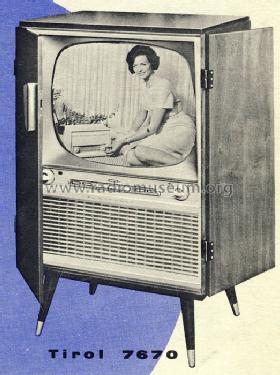

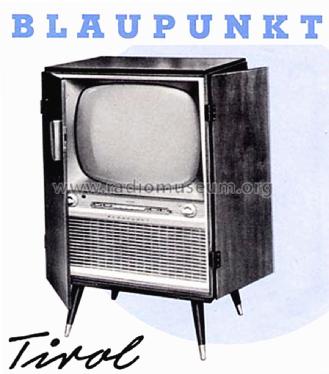

• Model: Tirol 7670 - Blaupunkt Ideal, Berlin,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 610 x 970 x 460 mm / 24 x 38.2 x 18.1 inch

• Notes

• Technische Daten wie Sevilla 7650, jedoch Standgerät mit verschließbaren Türen.

  Anschluss für Kabelfernbedienung 252, Regelung von Lautstärke und Kontrast und Netzschalter Ein/Aus.

• Net weight (2.2 lb = 1 kg)
• 46 kg / 101 lb 5.1 oz (101.322 lb)

• Price in first year of sale
• 1,198.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in
• -- Original-techn. papers. (Blaupunkt Kundendienstschrift, Fernseher 1959/60)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
