Toby 7.651.390

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98050

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

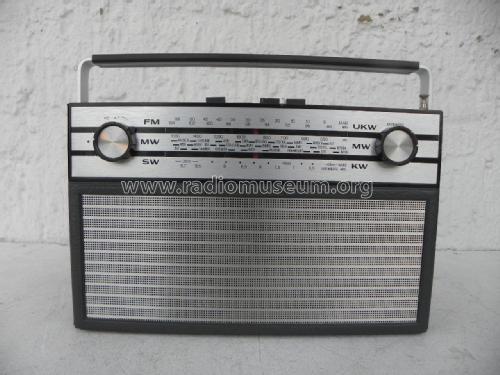

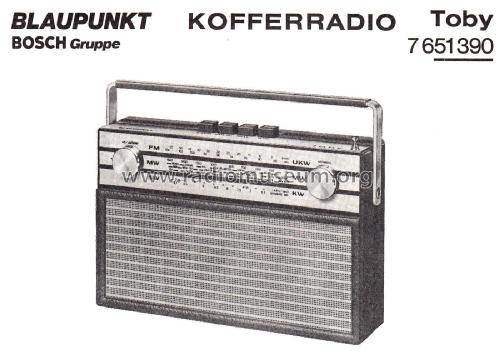

• Picture

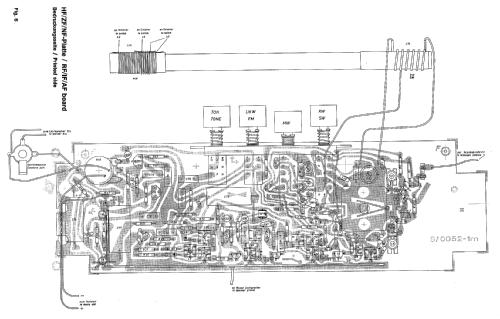

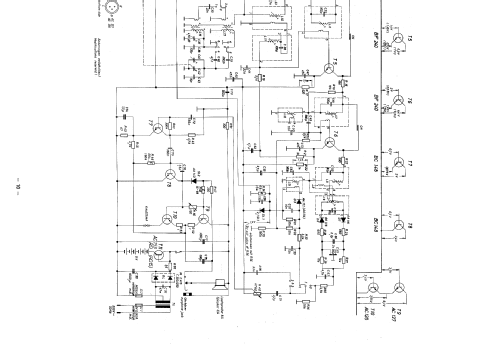

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF255 BF255 BF240 BF241 BF240 BF240 BC148 BC148 AC127 AC128 AC153 AA112 AA116 AA143 2,1St1 Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220/2x4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Toby 7.651.390 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 210 x 70 mm / 10.4 x 8.3 x 2.8 inch

• Notes

• Kofferradio im kunstlederüberzogenen Plastikgehäuse mit Metallfront, schaltbare Tonblende, Ferritantenne, für UKW Teleskopantenne.

  Dioden teilweise mehrfach vorhanden

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Original-techn. papers. (Balaupunkt Service-Unterlagen04.71)

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.

• Other Models

• Here you find 3554 models, 3240 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
