• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112415

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• PCL86 PCH200 PCL85 PCF802 PL500 PY88 DY86 A59-11W or A59-12W/2

• Number of Transistors
• 11

• Semiconductors
• AF139 AF139 IW8377 AF200 AF125 AF121 SE1001 BF110 BFY39 AF126 AF137 ZG18 OA90 SFD108 M80C4 AA119 AA119 OA161 SFD108 BY250

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Toledo 7.676.110 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 480 x 250 mm / 26 x 18.9 x 9.8 inch

• Notes
• VHF/UHF. Technische Daten wie Java 7.676.050, jedoch 59-cm-Bildröhre und nachrüstbarer Fernbedienungsanschluß.

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)

• Source of data

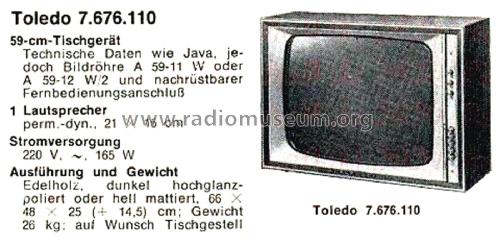

• Handbuch VDRG 1966/1967

• Mentioned in

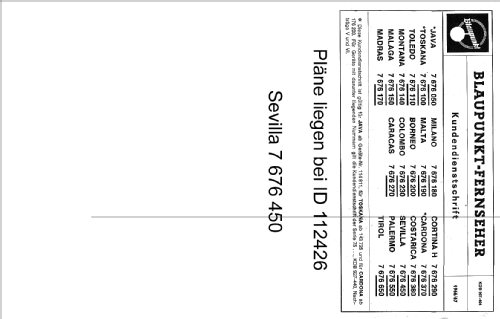

• -- Original-techn. papers. (Kundendienstschrift KDB 967-404, Fernseher 1966/67)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
