• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 164610

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

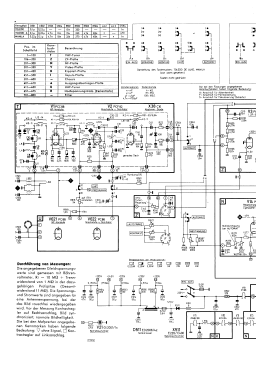

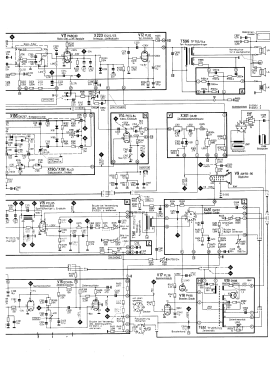

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• AW59-90

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Toledo de luxe 23 71340 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 605 x 510 x 440 mm / 23.8 x 20.1 x 17.3 inch

• Notes
• VHF Bd.I+III; UHF vorbereitet (nachträglicher Einbau möglich, dann zusätzl. Röhren PC88 und PC86). Auch mit eingebautem UHF-Tuner erhältlich: Typ 71350. Passende Fernbedienung FG253, 22,-DM

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Mentioned in
• Handbuch RFP 1961/62

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
