• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 238761

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A61-120W

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

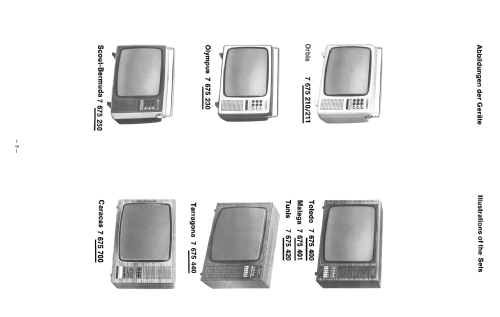

• Model: Toledo 7675400 Ch= SM Monochrome - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Screen: 61 cm, 6 preeselect switch.

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

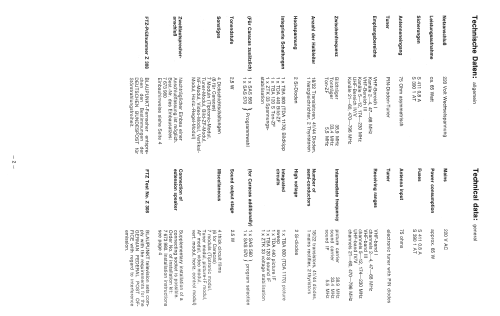

• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
