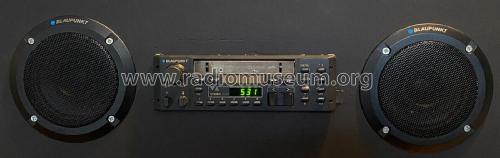

Toronto SQR32 7.641.886.010 ab 7700001

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 142232
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Toronto SQR32 7.641.886.010 ab 7700001 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 190 x 65 x 220 mm / 7.5 x 2.6 x 8.7 inch
  • Notes
  • Same as Bremen SQR32 but without ARI traffic info decoder.
  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Price in first year of sale
  • 66.66 Pesetas
  • Mentioned in

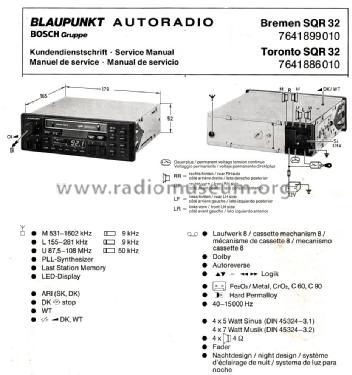

  • -- Original prospect or advert
  • Author
  • Model page created by Enrico Bonisolo. See "Data change" for further contributors.
