Toskana 7520

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99523

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

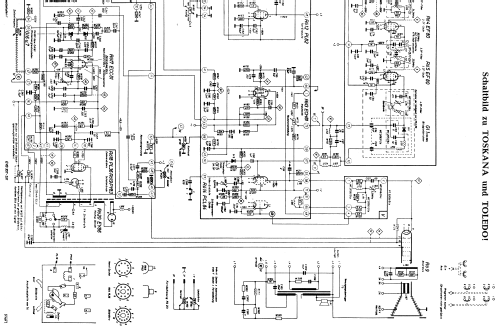

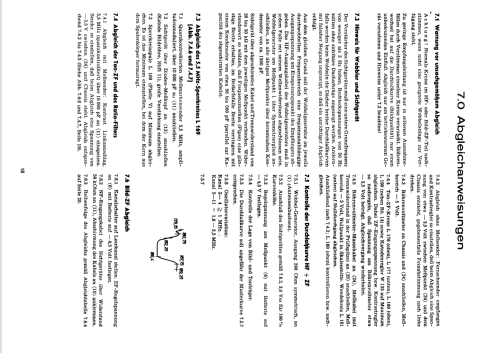

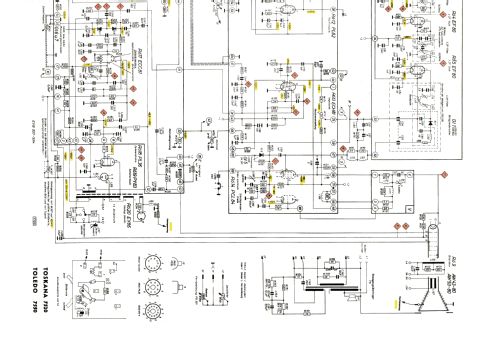

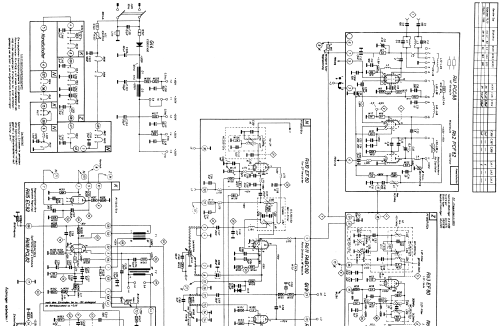

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 EF80 PABC80 PL82 ECH81 PCL84 EC92 PCL82 ECC81 PL36 PY83 EY86 AW43-80

• Number of Transistors

• Semiconductors
• OA160 OA261 OA161 OA161 G5/2 E12,5C5 E220C350

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Toskana 7520 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 440 x 410 mm / 20.5 x 17.3 x 16.1 inch

• Notes

• VHF-Band I + III.

  Anschluss für Fernbedienung FG 251, Regelung von Lautstärke und Kontrast.

• Net weight (2.2 lb = 1 kg)
• 23 kg / 50 lb 10.6 oz (50.661 lb)

• Price in first year of sale
• 790.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Mentioned in
• - - Manufacturers Literature (Blaupunkt Fernseher, Technische Daten, Saison 1958/59 1)

• Literature/Schematics (1)
• -- Original-techn. papers. (Baupunkt Fernseher, EVB 957-591)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
