• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101160

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 EF80 PABC80 PL82 PCL84 ECC81 PCL82 ECH81 PL36 PY88 EY86 AW43-88

• Number of Transistors

• Semiconductors
• G5/2 OA161 OA161 OA161 OA261 OA261 E12,5C5 E220C400

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

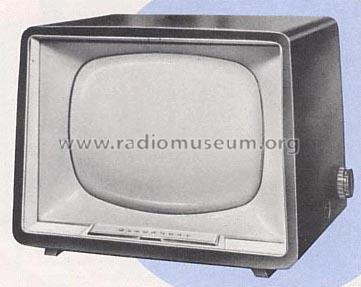

• Model: Toskana 7610 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 415 x 380 mm / 20.3 x 16.3 x 15 inch

• Notes

• VHF; Mehrpreis für eingebauten UHF-Tuner 126,- DM.

  Anschluss für Kabelfernbedienung FG 252, Regelung von Lautstärke und Kontrast.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 748.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
