• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1988 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 254868

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

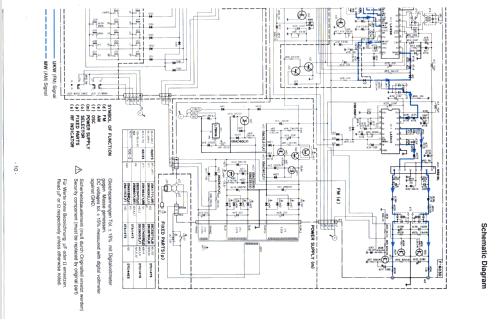

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop; ZF/IF 450/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220/240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tuner artech PT - 3690 7 628 200 - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 443 x 60 x 255 mm / 17.4 x 2.4 x 10 inch

• Notes

• HiFi Tuner.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
