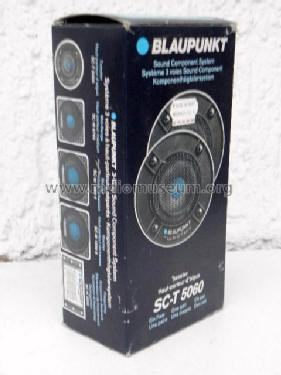

Hochtöner (Tweeter) SC-T 5060

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1981–1983
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 261201
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Hochtöner SC-T 5060 - Blaupunkt Ideal, Berlin,
  • Dimensions (WHD)
  • 85 x 30 x 85 mm / 3.3 x 1.2 x 3.3 inch
  • Notes

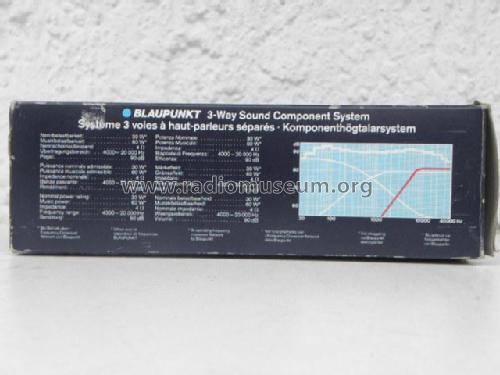

  • Nennbelastung  30W, Musikbelastbarkeit  60W,  Nennscheinwiderstand  4Ω, Übertragungsbereich  4000 – 20000 Hz, Pegel 90 dB

    Tweeter gehört zum Blaupunkt Sound-Component-System.

    Es besteht aus:

    • SC-T 5060 Hochtöner (Tweeter)
    • SC-M 8760 Mitteltöner (Mid-Range)
    • SC-W 1060 Tieftöner ( Woofer)
    • SC-N 3000 Frequenzweiche (Frequency Divider Network)



  • Net weight (2.2 lb = 1 kg)
  • 0.120 kg / 0 lb 4.2 oz (0.264 lb)
  • Price in first year of sale
  • 47.00 DM
  • Mentioned in

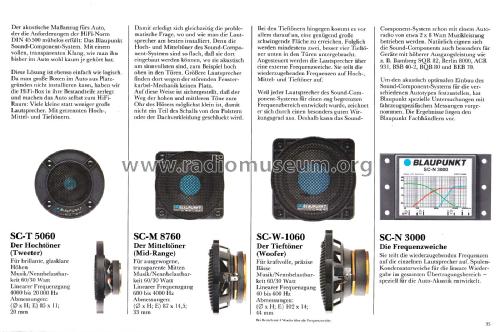

  • -- Original prospect or advert (Blp Autoradio Programm 1981/82)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Blp Autoradio-Autohifi 82/83)
  • Literature/Schematics (2)
  • -- Original prospect or advert (Turn your car into a Hifi enclosure GB 06/81)
  • Author
  • Model page created by Werner Wussow. See "Data change" for further contributors.
