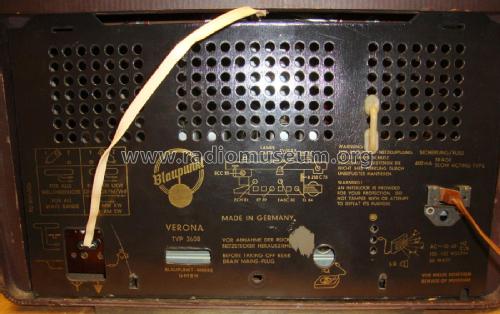

Verona 3D 2608 USA

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 225599
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • 3 Loudspeakers / Ø 12 cm = 4.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Verona 3D 2608 USA - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 470 x 330 x 220 mm / 18.5 x 13 x 8.7 inch
  • Notes

  • Blaupunkt Verona Super HiFi 3D 2608 is an export model for the USA.
    BC dial with indicated Civil Defense frequencies (CD marks).
    See also the similar domestic model Verona 2605 with LW instead of SW reception.

  • Net weight (2.2 lb = 1 kg)
  • 18 lb (18 lb 0 oz) / 8.172 kg
  • Literature/Schematics (1)
  • -- Original prospect or advert (Blaupunkt Prospekt 7/1959 N.Pickens Import Company New York)
  • Author
  • Model page created by Angel Vega. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Verona 3D is part of the collections of the following members.

 Forum

Forum contributions about this model: Blaupunkt Ideal,: Verona 3D 2608 USA

Threads: 2 | Posts: 6

Hi,

When restoring a radio I like to use mac preview  on the pdf to mark with color (green) the circuits I have checked. I also like to mark the capacitors changed with a highlighted red. It seems I am unable to alter the pdf, not even to rotate it without a password. Is there anyway around this. Where can I find the password or change the name of the schematic so I can alter it?

Thanks

Peter

Peter DeLuca, 08.May.24

Weitere Posts (2) zu diesem Thema.

Hello:

I am restoring a Blaupunkt Verona 3D 2608.  I've been replacing capacitors and electrolytics and I'm confused by a capacitor listing.  The capacitor is identified as 10  N150  5% in the parts list.  What should the actual capacitance of the capacitor be?  I don't know how to interpret 10  N150  5%.  Should I assume that the dogbone capacitors in this radio are listed in picofarads?  I've taken out the old capacitor and tried measuring it.  Using a Sencor L102 I come up with 190 picofarads.

Pardon my ignorance.  Any advice would be very much appreciated. Thank you.
