Video Cassette Recorder RTV-100

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1979/1980
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 166094
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

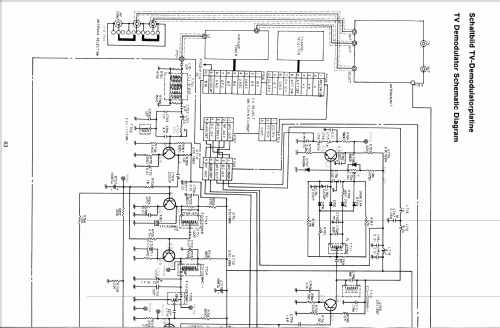

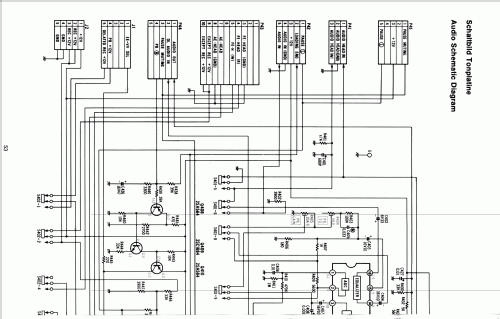

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Video-Taperecorder/-Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Video Cassette Recorder RTV-100 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 485 x 176 x 368 mm / 19.1 x 6.9 x 14.5 inch
  • Notes

  •

    Video Signal System PAL: R/P
    Videostandard: VHS
    Tuner equipped: Yes HF Output: Yes
    Timer: Yes Color: Yes
    Insert-Cut: No Controllable by Editing-System: No
    Timebas Corrector: No RGB Video In/Out: No
    Composite (FBAS) Video In/Out: Yes Component Video In/Out: No
    S-Video In/Out: No Signal to Noise Video: -
    Horizontal Resol. black/white: 240l. Horizontal Resolution Color: >160l.
    Dropout compensator: Yes Wow and Flutter lin. audiotrack: -
    No. of Audiochannels linear track: 1 No. of Audiochannels helical track:

    0
    Signal to Noise linear Audio track: - Signal to Noise helical Audio track: -
    Audio Out Asym Audio In Asym
    crosstalk lin. Audio track - crosstalk heli. Audio track -

    Audio Frequency Response :-
    Remote Control: No

    Gerät ist baugleich mit Panasonic NV8610

    Blaupunkt RTV-100 Video Cassette Recorder;
    Toplader, Digitaluhr mit 7 Tage Timer, mech. Bandzählwerk, mech. Laufwerkfunktionstasten, elektronischer CCIR B/G VHF/UHF Tuner mit 8 Festsendertasten, 39 W Leistungsaufnahme.



  • Net weight (2.2 lb = 1 kg)
  • 16.5 kg / 36 lb 5.5 oz (36.344 lb)
  • Mentioned in
  • -- Original prospect or advert ((D) Blaupunkt Programm 1979/80 Fernsehgeräte-HiFi-Geräte-VideoTechnik-Uhrenradios)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
