• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1990 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 349333

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 48-52 Hz: 200-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Video Recorder BV 230 EC - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 380 x 86 x 338 mm / 15 x 3.4 x 13.3 inch

• Notes

• VHS video recorder with internal VHF and UHF tuner. Possibility of scheduled or direct recording.

• Mentioned in

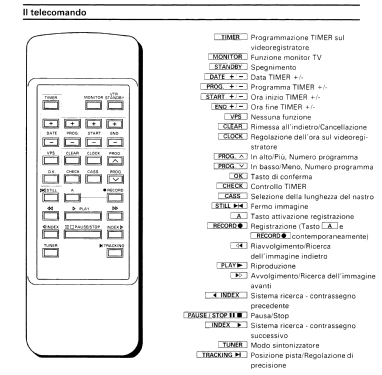

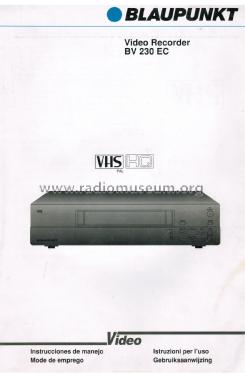

• -- Original-techn. papers. ("Istruzioni per l'uso" originali da Blaupunkt.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
