• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 173687

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BC238 BC238 BC238 BC238 BC238 BF450 BC308

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

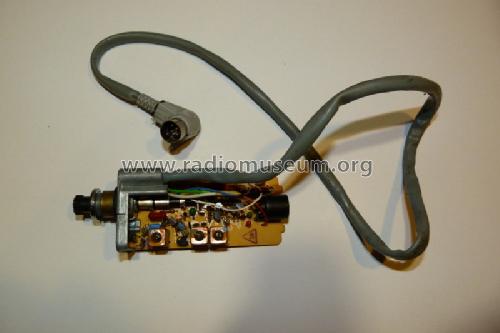

• Model: VRF-Decoder für Senderkennung SK11 - Blaupunkt Ideal, Berlin,

• Notes
• Für FM-Mono Empfänger mit TB-Buchse nach DIN45322, Kurzschlussstecker wird entfernt.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Daniel Consales. See "Data change" for further contributors.
