W300 (300W)

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1930–1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 483

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

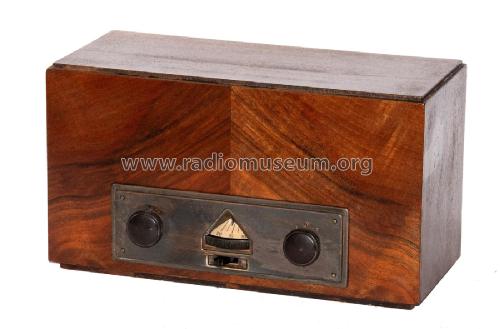

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

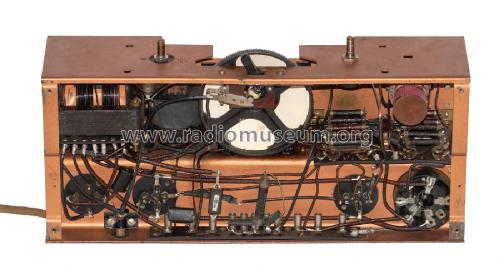

• Number of Tubes
• 4

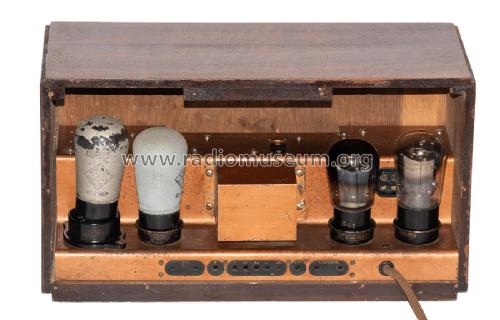

• Valves / Tubes
• REN1004 REN1004 RE134 or RES164 RGN354

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

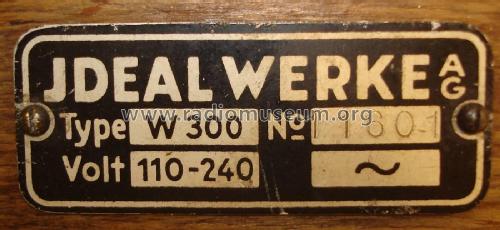

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: W300 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 355 x 195 x 155 mm / 14 x 7.7 x 6.1 inch

• Notes

• Ch= LW300 [501, 569]

  Preisangabe ohne Röhren, zusätzlich Röhrensatz

  - 2 x REN1004, RGN354, RE134 Preis: RM 45,- oder
  - 2 x REN1004, RGN354, RES164d Preis: RM 53,50

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Price in first year of sale
• 120.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Katalog Radio-Zentrale Prohaska 1931/32

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
