- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 503
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Quelle: GFGF-Archiv / Blaupunkt-Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

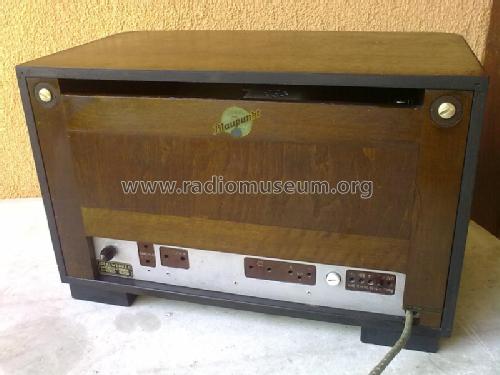

- Model: W4000 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 425 x 270 x 230 mm / 16.7 x 10.6 x 9.1 inch
- Notes
-
Preis ohne Röhren, zusätzlich Röhrensatz: 72,90 RM
- Price in first year of sale
- 159.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
