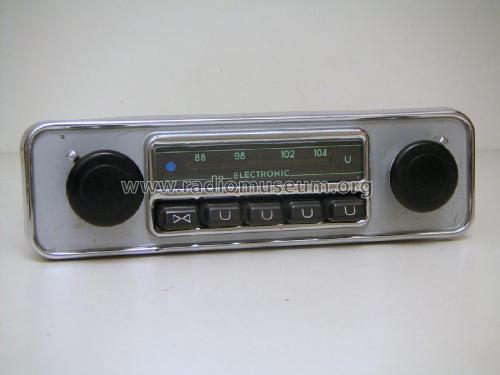

Wiesbaden Electronic 7.633.716.000
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1973/1974
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 191394
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Q: Prospekt 1974
- Number of Transistors
- 27
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 12 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Wiesbaden Electronic 7.633.716.000 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Notes
- Blaupunkt Wiesbaden Electronic ist ein Autoradio mit Sendersuchlauf und Diodenabstimmung.
Frequenzanzeige über Drehspul-Walzenanzeige wie beim Modell Coburg Electronic.
4 Stationstasten.
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
