• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1940–1942 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 638

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• DCH11 DF11 DF11 DAF11 DAF11 DC11 DDD11 U518H

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / AC 110-265; DC 85-280 / 2 x 1,4 & 90 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• from Radiomuseum.org

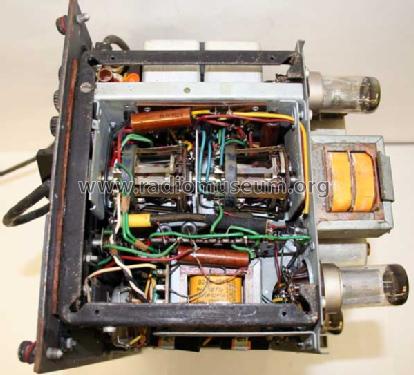

• Model: WR 1 [Stahlröhren] - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Feldstärkeanzeige; Diode

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkgeschichte der GFGF (8863)

• Literature/Schematics (1)
• Museums Bote, Österr. (Heft 132/2005, S.9 ff, Gerätebeschreibung)
