- Country
- Germany
- Manufacturer / Brand
- Blohm, Ing. Heinz; Plauen /Vogtl. (Ostd.), später VEB Elgawa; VEB Elektronik Plauen/V.
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 14064
-
- alternative name: Elektronik Plauen/Vogtland, VEB
Aus "Funktechnik" H. 07/1949

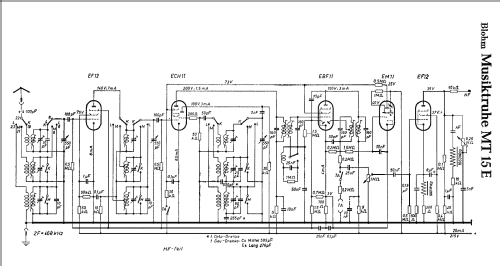

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sinfonie MT15E - Blohm, Ing. Heinz; Plauen /
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Musik-Truhe, wahlweise mit Einfach- oder Zehnfach-Plattenspieler (Preis bis 3500,-M)
- Net weight (2.2 lb = 1 kg)
- 60 kg / 132 lb 2.5 oz (132.159 lb)
- Price in first year of sale
- 2,900.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funk-Technik (FT) (4907)
- Other Models
-
Here you find 51 models, 22 with images and 33 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blohm, Ing. Heinz; Plauen /Vogtl. (Ostd.), später VEB Elgawa; VEB Elektronik Plauen/V.
