• Country
• Germany

• Manufacturer / Brand
• Blohm, Ing. Heinz; Plauen /Vogtl. (Ostd.), später VEB Elgawa; VEB Elektronik Plauen/V.

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14086

• • alternative name: Elektronik Plauen/Vogtland, VEB

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH11 EBF11 EF11 EL12 EM11 EZ12

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 125/220 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: Viola A57W - Blohm, Ing. Heinz; Plauen /

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

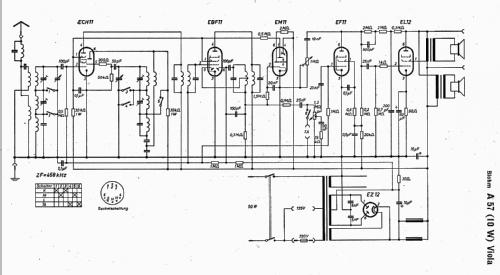

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 2
