Amplifier D 12

Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

Data
Forum
Pictures
Collections

  • Year
  • 1939
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 232168

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 50 to 60 Hz, 110 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 12 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

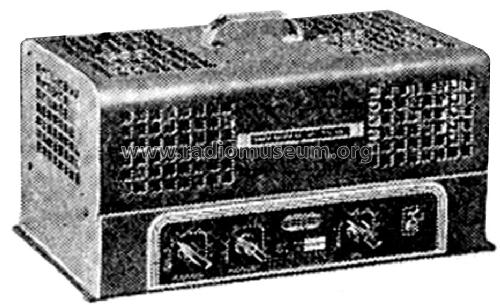

  • Model: Amplifier D 12 - Bogen -Presto, David Co., Inc.
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • 12 Watt amplifier D 12
    Output: 12 W, <5% harmonic content.
    Gain: 128 dB
    Frequency response: 55 to 9000 Hz, ±2 dB.
    Output impedance: 2-4-9-15-500 Ω.
    Field supply for two 1500 Ω electro dynamic speakers.

    The amplifier can be obtained with provision for use with the Bogen wireless or wired remote control at an additional cost of $ 2.20.

    Radio-Shack Cat. No. S9308

  • Price in first year of sale
  • 33.81 USD
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
