K10

• Country
• United States of America (USA)

• Manufacturer / Brand
• Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

• Year
• 1950 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 147496

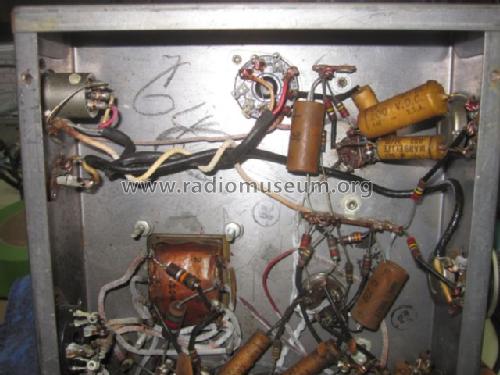

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AU6 12AX7 6AQ5 6AQ5 6V4 or 6BW4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: K10 - Bogen -Presto, David Co., Inc.

• Shape
• Tablemodel, with any shape - general.

• Notes
• David Bogen model K10; 10 W PA Amplifier.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-58, Set 424, Folder 6)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
