- Country
- United States of America (USA)
- Manufacturer / Brand
- Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 158420
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 14 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

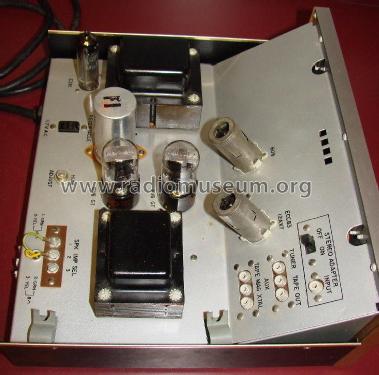

- Model: DB114 - Bogen -Presto, David Co., Inc.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 4 x 11 inch / 305 x 102 x 279 mm
- Notes
- The David Bogen Model DB114 is an AC Operated 5 Tube 7 Channel Audio Amplifier.
- Net weight (2.2 lb = 1 kg)
- 16 lb 0 oz (16 lb) / 7.264 kg
- Price in first year of sale
- 69.50 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 4-59, Set 437, Folder 4)
- Literature/Schematics (2)
- Radio Shack Catalog (1959 page 11)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
