- Country
- United States of America (USA)
- Manufacturer / Brand
- Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124859
aus ebay, Verkäufer bot.inc
aus ebay, Verkäufer bot.inc
aus ebay, Verkäufer bot.inc
Sams Photofact Folders

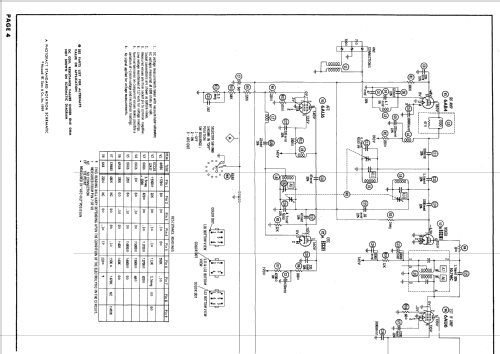

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 11 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM51 - Bogen -Presto, David Co., Inc.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 4.75 x 12.25 inch / 305 x 121 x 311 mm
- Notes
- The David Bogen Model FM51 is an AC operated 8 Tube FM Receiver.
- Net weight (2.2 lb = 1 kg)
- 16 lb 0 oz (16 lb) / 7.264 kg
- Price in first year of sale
- 115.00 USD
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-59, Set 467, Folder 4)
- Literature/Schematics (2)
- Radio Shack Catalog (1960, page 12)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
