• Country
• United States of America (USA)

• Manufacturer / Brand
• Challenger Amplifier Co. (Bogen); New York, NY / Paramus, NJ

• Year
• 1963 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 221285

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

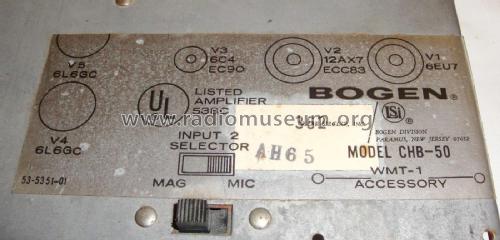

• 6EU7 12AX7 6C4 6L6GC 6L6GC

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

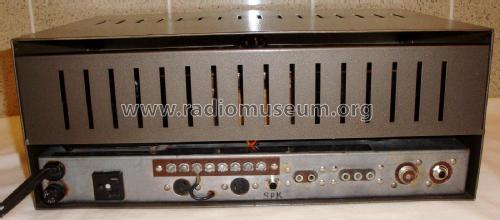

• Model: CHB 50 - Challenger Amplifier Co. Bogen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 6 x 10 inch / 406 x 152 x 254 mm

• Notes
• PA amplifier; 2 mic inputs.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
