- Country
- United States of America (USA)
- Manufacturer / Brand
- Challenger Amplifier Co. (Bogen); New York, NY / Paramus, NJ
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135683
Radio Shack Katalog 1960 - Seite 12

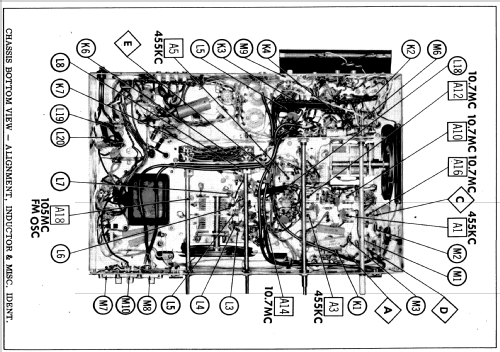

Sams photofact set 483 folder 4 date 5-60.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: RC412 - Challenger Amplifier Co. Bogen
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 16.5 x 5.5 x 12.5 inch / 419 x 140 x 318 mm
- Notes
-

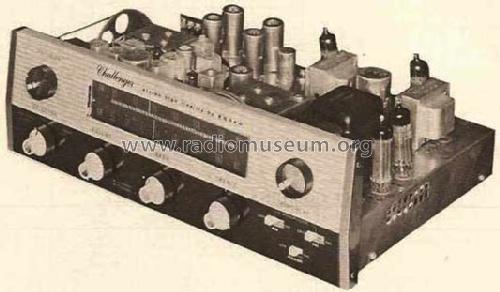

Bogen Stereo HiFi Receiver Model Challenger RC412.
2 x 6 watts, Frequency Range FM 88 -108 mc, AM 520 - 1640 kc.
Optional Case for RC412 ENC-1 (36CX269) $8.50.
- Price in first year of sale
- 169.50 USD
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 483, Folder 4, May 1960)
- Literature/Schematics (2)
- Radio Shack Catalog (1960, page 12)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
