• Country
• United States of America (USA)

• Manufacturer / Brand
• Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 150152

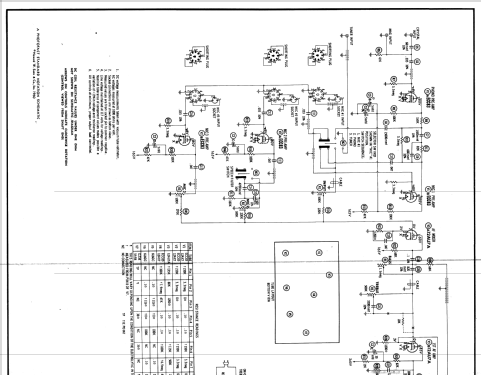

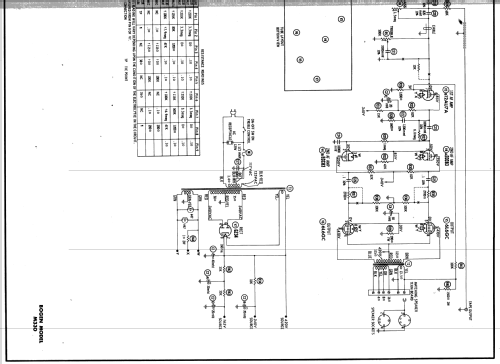

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC83 ECC83 ECC83 12AU7A 6L6GC 6L6GC GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org

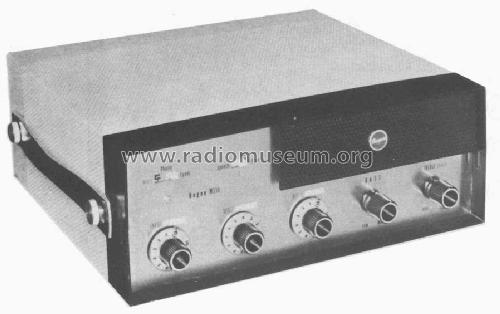

• Model: M330 - Bogen -Presto, David Co., Inc.

• Shape
• Tablemodel, with any shape - general.

• Notes
• AC operated 6 input audio amplifier.

• Literature/Schematics (1)

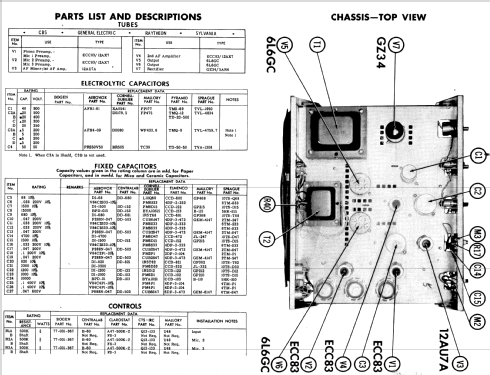

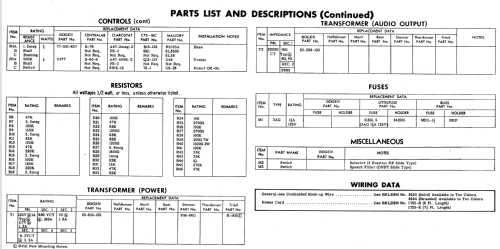

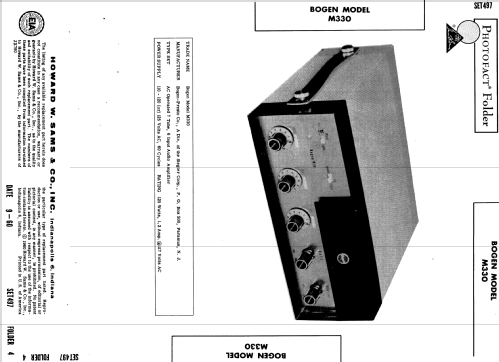

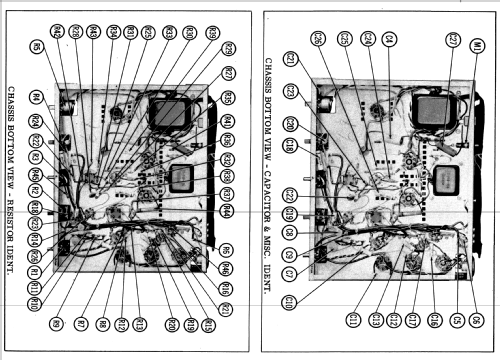

• Photofact Folder, Howard W. SAMS (Set 497 folder 4 date 9-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
