• Country
• United States of America (USA)

• Manufacturer / Brand
• Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 147653

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC83 ECC83 ECC83 7247 ECC83 7027A or 7581A 7027A or 7581A GZ34 GZ34 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

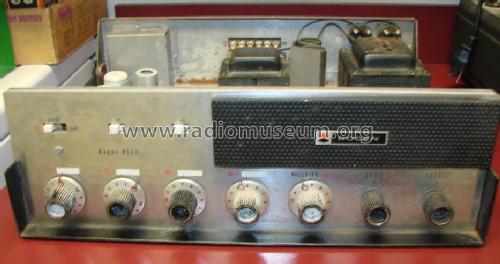

• Model: MX60 - Bogen -Presto, David Co., Inc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16.25 x 5.5 x 13 inch / 413 x 140 x 330 mm

• Notes

• PA amplifier with 4 inputs: Mic/Phono/Tuner + 3x Mic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 482 folder 6 date 4-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
