- Country
- United States of America (USA)
- Manufacturer / Brand
- Boonton Radio Corp.; Boonton, NJ
- Year
- 1954 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 291491
View.
Front view.
Q meter.
Q multiplier.
Chassis.

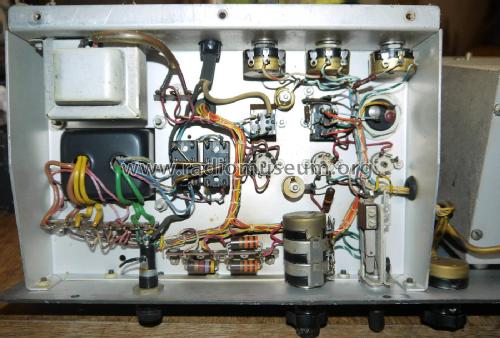

Chassis underside.
Badge.
- Number of Tubes
- 3
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115/230 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 260-AP - Boonton Radio Corp.; Boonton,
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 20 x 12.5 x 8.5 inch / 508 x 318 x 216 mm
- Notes
-
115/230V, 50/60Hz, version of Boonton 260-A q-meter.
Range: direct measurement: Q=10-625, inductance: 0.09uH-130mH.
Measured over frequency range: 50kHz-50MHz.
Can be extended down to 1kHz with external oscillator and 564-A coupling transformer.
Uses thermocouple meter, bottom, to measure amplitude of oscillator. Care must be taken to keep the output within range of the meter, using the XQ coarse control, to avoid burning out the thermocouple. Other meter, top, is moving-coil valve voltmeter measuring the amplitude of signal developed across a 0.02 ohm resistance in series with the tuned circuit under test.
- Net weight (2.2 lb = 1 kg)
- 40 lb 0 oz (40 lb) / 18.160 kg
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by David Jones. See "Data change" for further contributors.
